DC arc detection type photovoltaic generation system|BIPV (Building Integrated Photovoltaic System)|High efficiency PV inverter|Renewable energy project PV solar EPC
Guarantee the highest level of efficiency and cost-effectiveness in Korea

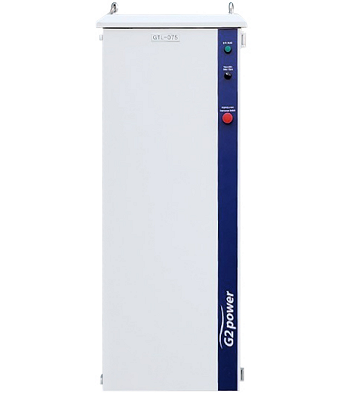

High efficiency PV inverter
(System interconnection three phase transformer-less inverter )
Product introduction
High-efficiency PV inverter that improves solar conversion efficiency by variable voltage incremental MPPT and applies 3-level topology technology to improve power generation efficiency and guarantees profitability by applying an optimized design of heat dissipation structure
Product use
PV inverter that converts the DC (direct current) current generated from the PV module into AC (alternating current) current to supply power to the load and system
Special feature of product
Power generation efficiency increase: Conversion efficiency of 98%, the highest level in Korea
Reduce an area of installation: Compact thermal design
Life expectancy extension effect of more than 20% on average: 3-Level PWM control technology
LVRT (Low Voltage Ride Through) control function: Suitable for large-scale solar power plants by solving system instability
DC ground blocking function
Prompt customer support service
Establishment of nationwide 24-hour A/S response system and technical support

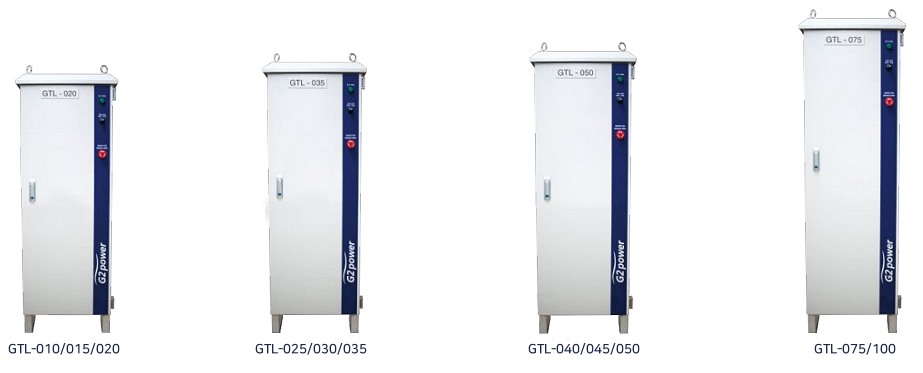

Product lineup
Core function
01
Active power factor control and DC ground detection function
The power factor control function to compensate for reactive power of the KEPCO system compensates for power quality and prevents ground faults by detecting the ground current of the DC input terminal of the inverter
02
Electrical fire accident diagnosis function
Prevents and blocks electrical fire accidents by detecting electromagnetic waves in the VHF (Very High Frequency) band according to internal temperature and initial arc generation before electrical fire accidents occur
03
Wireless LoRA communications and IoT based real-time remote monitoring diagnosis function
Efficient management of solar power generation by remotely monitoring the operation status of the inverter in real-time with a smartphone
